Product Details

Item Type: Generator
Display Size: 3 – 4.9 inch
Size: 195 x 175 x 70 mm / 7.68 x 6.89 x 2.76 inch

Package Includes:

1 x Pc

Frequency Characteristics
	JDS6600-15M	JDS6600-30M	JDS6600-40M	JDS6600-50M	JDS6600-60M
Sine frequency range	0~15MHz	0~30MHz	0~40MHz	0~50MHz	0~60MHz
Square frequency range	0~15MHz	0~15MHz	0~15MHz	0~15MHz	0~15MHz
Triangle frequency range	0~15MHz	0~15MHz	0~15MHz	0~15MHz	0~15MHz
Pulse frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
CMOS/TTL digital frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
Arbitrary wave frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
Square rise time	≤30nS	≤25nS	≤20nS	≤20nS	≤20nS
Mininum Frequency resolution	0.01µHz（0.00000001Hz）
Frequency accuracy	±20ppm
Frequency stability	±1ppm/3h
Waveform Characteristics
Waveform	Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.
Waveform length	2048 points
Waveform sampling rate	JDS6600-15M	JDS6600-30M	JDS6600-40M	JDS6600-50M	JDS6600-60M
	200MSa/s	200MSa/s	200MSa/s	266MSa/s	266MSa/s
Waveform vertical resolution	12 bits
Sine	Harmonic suppression	≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
	Total harmonic distortion	<0.8%(20Hz~20kHz,0dBm)
Square and Pulse	Overshoot (Square)	≤5%
	Duty-cycle range（Pulse）	0.1%~99.9%
Ramp wave	Linearity	≥98%(0.01Hz~10kHz)
Output Characteristics
Amplitude range	JDS6600-15M	JDS6600-30M	JDS6600-40M	JDS6600-50M	JDS6600-60M
	≤10MHz: 2mVpp ~ 20Vpp ≤15MHZ: 2mVpp ~ 10Vpp	≤10MHz: 2mVpp ~ 20Vpp ≤30MHZ: 2mVpp ~ 10Vpp	≤10MHz: 2mVpp ~ 20Vpp ≤30MHZ: 2mVpp ~ 10Vpp ≤60MHZ: 2mVpp ~ 5Vpp
Amplitude resolution	1mV
Amplitude stability	±0.5%/5 h
Amplitude flatness	±5%(<10MHz); ±10%(>10MHz)
Waveform Output
Output impedance	50Ω±10%（typical）
Protection	All the signal output termianl can be shorted within 60s
DC Offset
Offset adjusting range	Output Amplitude >2V	0.2V＜Output Amplitude≤2V		0＜Output Amplitude≤0.2V
	-9.99V~9.99V	-2.5V~2.5V		-0.25V~0.25V
Offset resolution	0.01 V
Phase characteristics
Phase adjusting range	0~359.9°
Phase resolution	0.1°
TTL/COMS Output
Low level	<0.3V
High level	1V~10V
Level rise/fall time	≤20ns
External Measurement Function
Frequency meter function	Frequency measurement range	1Hz~100MHz
	Measurement accuracy	Gate time continuously adjusted between0.01s~10s
Counter function	Counting region	0-4294967295
	Coupled mode	2kinds Coupling modes, DC and AC
	Control mode	Manual operation
Input signal voltage range	2Vpp~20Vpp
Pulse width measurement	0.01us (resolution), 20s (MAX measuring time)
Period measurement	0.01us (resolution), 20s (MAX measuring time)

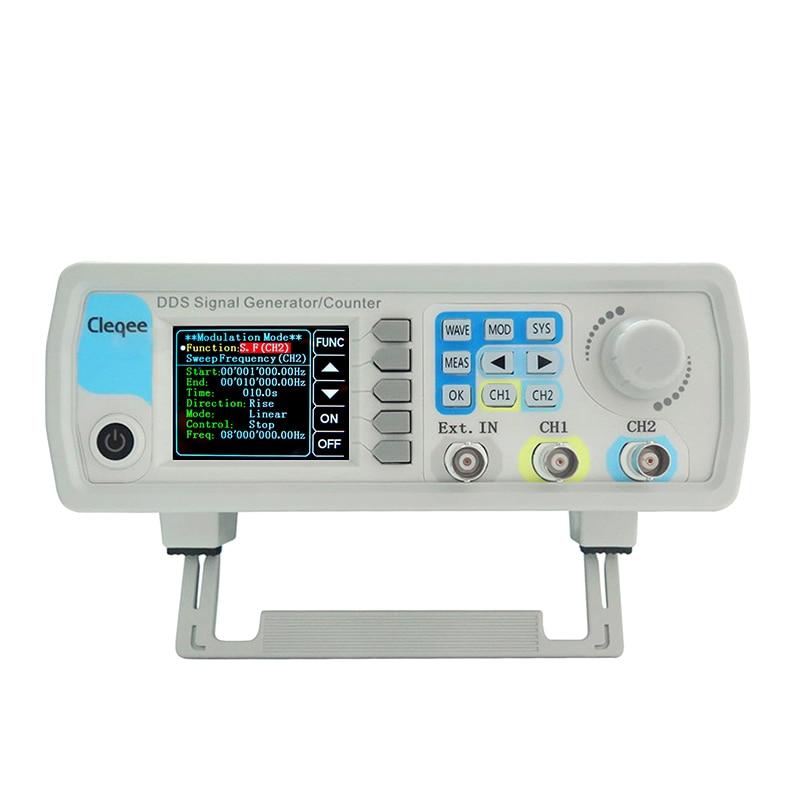

Sweep Function
Sweep channel	CH1 or CH2
Sweep type	linear sweep、log sweep
Sweep time	0.1s~999.9s
Setting range	User settings
Sweep direction	Forward, Backward and Roundtrip
Burst function
Number of pulses	1-1048575
Burst mode	Manual Trig、CH2 Trig、Ext.Tring(AC) 、Ext.Tring(DC)
General technical parameters
Display	Display type	2.4 inch TFT color LCD
Storage and loading	Quantity	100 groups
	Location	00 to 99（Power on will load the position 00）
Arbitrary wave	quantity	1 to 60, totally 60 groups（default set 15 groups）
Interface	Interface mode	USB to serial interface
	Extension interface –	There is serial interface of TTL level mode to be convenient for user development.
	Communication speed	115200bps
	communication protocol	Command-line mode, Open protocol
Power supply	Voltage range	DC5V±0.5V
Manufacturing process	Surface-mount technology, FPGA design, high reliability, long service life
Buzzer	User can set ON or OFF by procedure
Operating characteristics	Full button operation, knob continuous adjustment
Environmental conditions	Temperature：0~40 oCHumidity:<80%

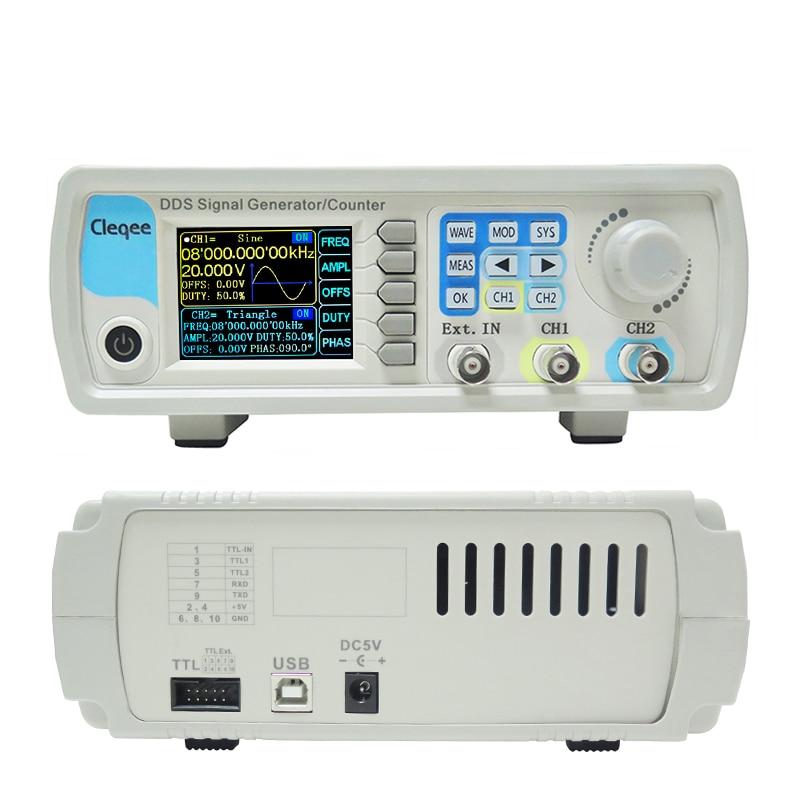

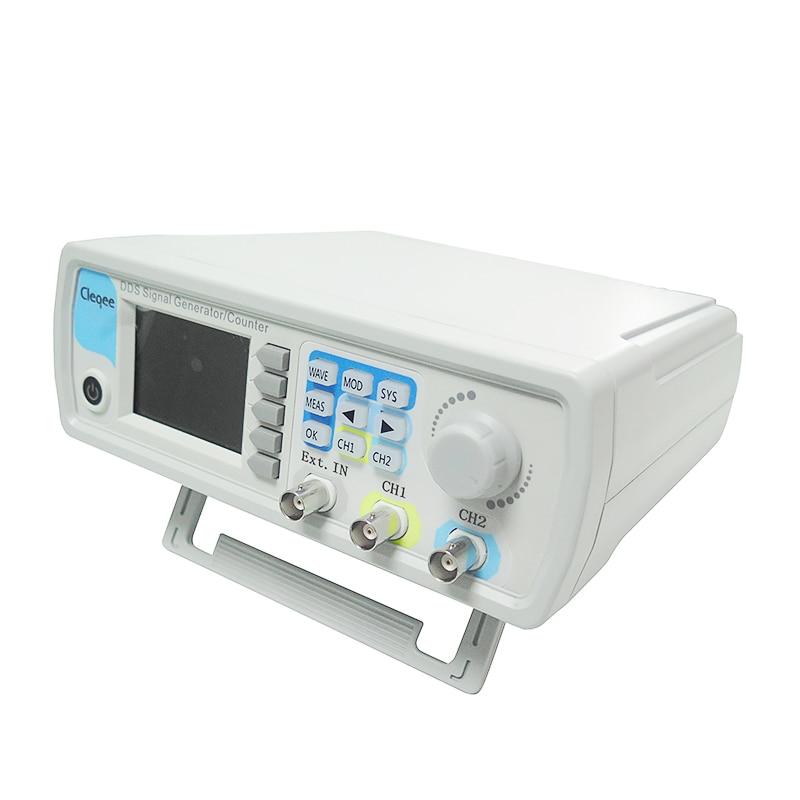

60MHZ Signal Generator with Digital Control

Item Specifics

Brand Name:

CLEQEE

Origin:

CN(Origin)

DIY Supplies:

ELECTRICAL

Display Size:

3.0 - 4.9 Inches

Model Number:

JDS6600-60M
